MiniPC for Meeting
產品資訊
重量: 0.70 公斤
Ultracompact mini PC with Intel® Celeron® and Pentium® Sliver processors, DDR4 RAM, dual storage, 4K UHD support, Wi-Fi and USB 3.1 Gen 1 Type-C
- Extremely quiet, fanless* design with the latest Intel® Celeron® processor
- Ultracompact size with 115 x 115 x 49mm dimensions and 0.62-liter volume
- Sliding chassis design for easy, two-step component upgrades
- Dual storage design with a 2.5-inch HDD or SSD and a M.2 SSD* or eMMC for the balance of speed and capacity to fit your needs
- Comprehensive I/O connectivity with HDMI 2.0, Mini DisplayPort, USB 3.1 Gen 1 Type-C and a VGA or COM port
- 24/7 reliability: Extensively tested to ensure long-term reliability
*M.2 connector support may vary by model
Ultracompact, easily upgradeable design
The new ASUS Mini PC PN40 is the ideal solution for both home entertainment and business applications, delivering swift yet extremely quiet performance with the latest Intel® Celeron® and Pentium® Silver processors and a fanless* design. Compact and lightweight, ASUS Mini PC PN40 measures just 115 x 115 x 49mm and weighs just 700 grams. Its convenient sliding chassis enables easy component upgrades with just a screwdriver, and comprehensive connectivity options, including USB 3.1 Gen 1 Type-C for fast data transmission and a VGA or COM port for connecting legacy devices, provide flexible compatibility for a wide range of usage scenarios.
Operating System
Windows 10 Home
Windows 10 Pro
Free Upgrade to Windows 11¹ (when available, see below); Barebone and Non-OS SKUs are excluded
Windows 10 Pro
Free Upgrade to Windows 11¹ (when available, see below); Barebone and Non-OS SKUs are excluded
CPU
Intel Celeron J4025
Chipset
Integrated
Graphics
Intel®UHD Graphics 600
Memory
4GB DDR4 memory
Storage
64G eMMC
128G M.2 SATA SSD
128G M.2 SATA SSD
Wireless Data Network
Wi-Fi 5, Bluetooth 5.0, 1*1
LAN
10/100/1000 Mbps
Gigabit LAN, Realtek® RTL8111H-CG
Gigabit LAN, Realtek® RTL8111H-CG
Audio
Realtek® ALC3236-VB2 HD Audio CODEC (optional)
Side(Front) I/O Ports

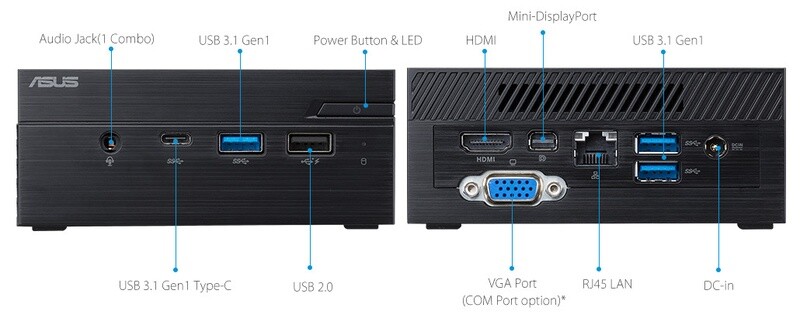

1 x USB 3.1 Gen1 Type-C, 1 x USB 3.1 Gen1 Type-A, 1 x USB 2.0(w/ quick charge), 1 x Audio Jack, 1 x K-Lock(side)
Back I/O Ports
1 x HDMI; 1 x MiniDP; 1 x Configurable I/O port; 2 x USB 3.1 Gen1 Type-A, 1 x RJ45 LAN, 1 x DC-in
Speaker
No
Power Supply
19Vdc, 3.42A, 65W Power Adapter
Dimensions (W x D x H)
115 x 115 x 49 mm
Weight
700g (include 2.5" HDD)
Color
Black
Accessories
USB Keyboard & Mouse
Certificates
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Remark
¹The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing will vary by device. Certain features require specific hardware (see aka.ms/windows11-spec).
